F330

Master Gathering

25 Minutes

Flight Time

4000 Meters

Control Distance

Moderate Breeze

Wind Loading Rating

-30℃-85℃

Operating Temperature

4000 Meters

Telemetry Distance

330

Diagonal Length

Intelligent Operations: High-precision Surveying and Mapping, Auto Flight

DataFlash Logs View Supported, All Operations Are Traceable

Radiolink crossflight Flight Controller

More Stable and Secure

Crossflight, the unique high dynamic algorithm flight controller, which combines Kalman filtering technology and inertial navigation algorithm, can still correctly calculate changes in acceleration and gravity even in high-speed flight, resulting in stable flight and accurate height-setting.

Support auto flight by following the waypoints set in Mission Planner.

* Click to check more details about the crossflight

Radiolink TS100 GPS

De-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference.
Anti-interference:
In-band input 1dB compression point -3dBm high linear LNA can

minimize the impact of even the small amount of interference signals that pass the filter.

Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.

*Click to check more details about the TS100


Dual Anti-interference Technology, 50 Centimeters Positioning Accuracy

Worry-free of UAV High-power Image Transmission, High-Voltage Lines, or Other Strong Signal Interference


4000 Meters Control Distance

The transmitter AT9S Pro or T8FB can be selected, which with excellent anti-interference performance.

Functions are stable and easy to control even under the complicated urban environment with

an aerial control distance of 4000 meters, realizing visible and controllable racing in the city.

Powerful Power System, Excellent Flight Performance

GPS

Motor

Flight controller

Battery

Receiver

ESC

Propeller

FLYCOLOR 30A ESC

SZ-SPEED 2312 1000KV Motor

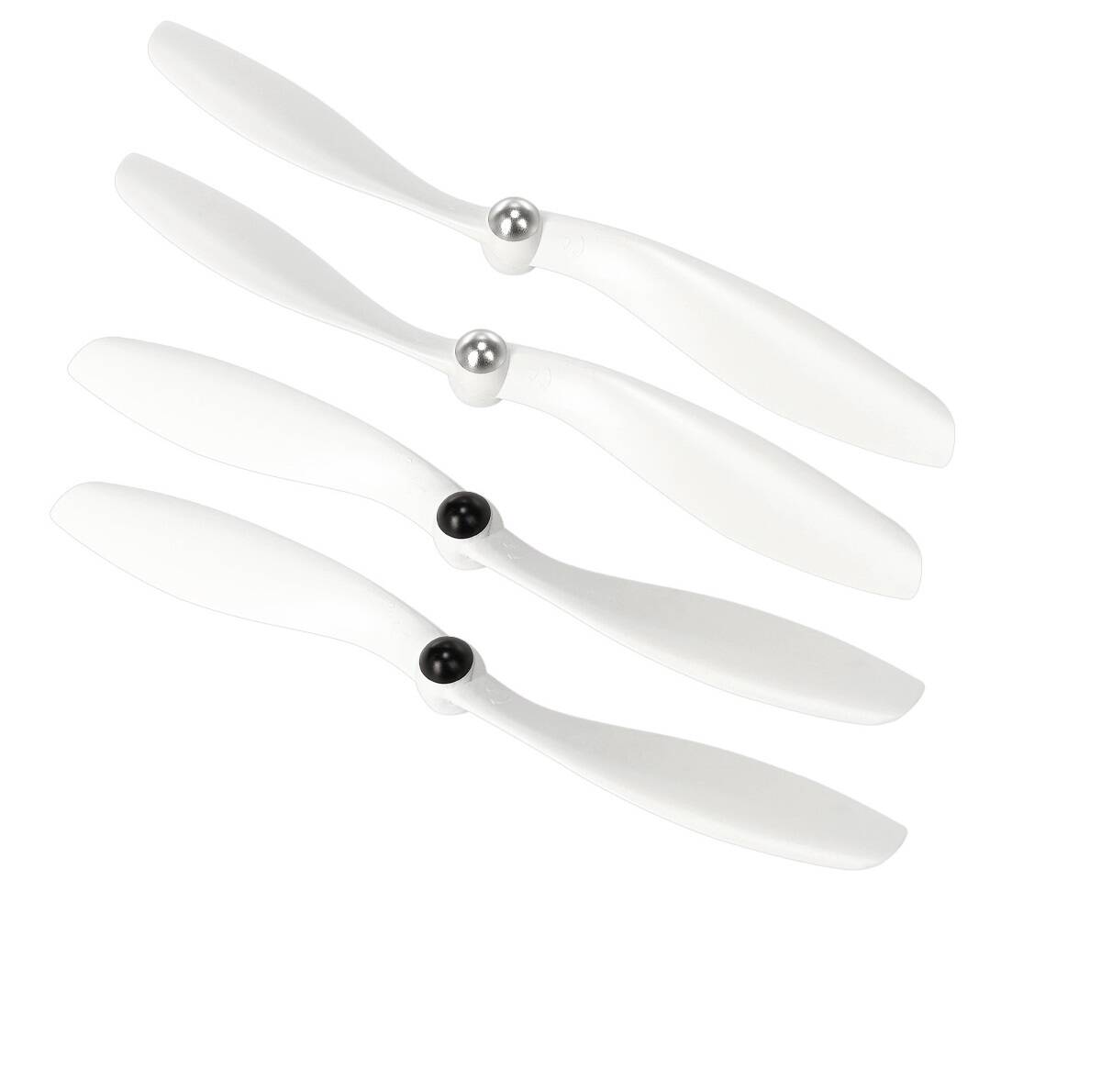

GEMFAN 8045 Self-tightening Propeller

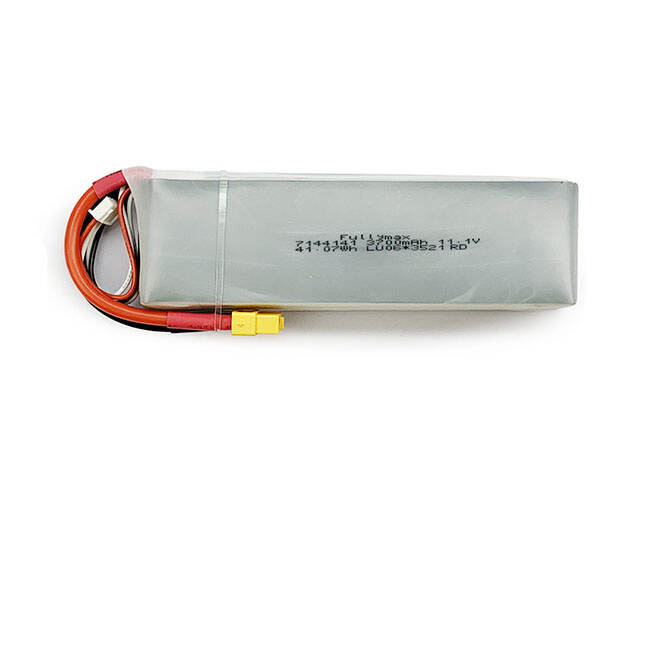

HPY 11.1V 4100mAh 35C XT60 Battery

­­More Select Option

Supports DJI O3 or CADDX walksnail Avatar HD PRO KIT high-definition image transmission, solving the problem of poor image quality in traditional analog image transmission, and achieving higher-definition and more accurate operations.

Supports External High-definition Image Transmission,

Farther and Clearer

The Avatar HD system utilizes industry-leading H.265 encoding technology to provide 1080P/100FPS FPV video quality with low latency, providing an immersive and responsive experience.50° FOV, +2 to -6 diopter, 1PD57~72mm, lenses for astigmatism, myopia, and blue light-blocking glasses can be replaced to meet different vision needs.

CADDX Walksnail Avatar HD Goggles X

Optional 1mV high-precision independent balancing charger CB86-PLUS, with 97% operating efficiency, can be set up once to charge cycle 8 pieces of six-cell batteries automatically, with 6A balancing current, saving time and worry-free. Repair mode and internal resistance monitor ensure strong battery power.

*Click to check more details about the CB86PLUS

Radiolink 1mV Precision 6A Balance Charger

Work with Ultrasonic Sensor SU04, F330 can fly along barriers and detect obstacles immediately. Pilots are worried free from misjudgment, blind spots, or wind/airflow and can get rid of any potential threats in a smoky or gloomy environment. More effective and safer rescue is well guaranteed.

*Click to check more details about the SU04

Radiolink Ultrasonic Sensor SU04

Redevelopment Supported

Unique functions can be customized according to project needs.

Get Source Code from GitHub for Redevelopment: https://github.com/radiolinkW/ArduPilot-RL


Comprehensive Technical Support

With more than 20 years of R&D experience in the electric industry can provide

detailed instructions and tutorial videos from installation to flight.

All-round technical support such as installation, application, and calibration from ESC,

motor, and HD image transmission to the flight controller, and transmitter.

Almost all the parts of the Drone you need we can offer.

* The flight data of the F330 was tested in a controlled flight environment, the actual control is related to the flight conditions.

* If you encounter problems while using F330, you can check the instructions, usage tutorials, or FAQs on the navigation bar of this introduction, or contact by sending an email to after_service@radiolink.com.cn

* For purchases can contact sales@radiolink.com.cn

F330 RTF Packing List

  • F330*1

  • T8FB (8-channel transmitter)*1

  • HPY 11.1V 4100mAh Battery*1

  • GEMFAN 8045 Propeller(spare)*4

  • Binding Band for Battery*1

More packing list of the F330 Package Version

can be viewed at Radiolink's official AliExpress store here.

https://radiolink.aliexpress.com/store/group/RC-Drone/
